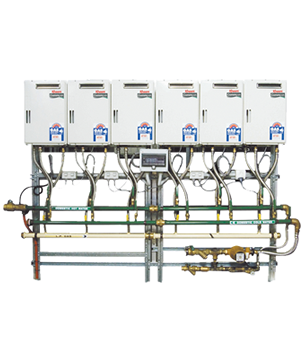

Commpak
Rheem Commpak combines sophisticated electronics and pump technology to equalise hot and cold water pressures. A differential set point combined with the thermal mass in the system piping replicates storage. The result is mains pressure performance without the need for storage tanks which reduces the overall footprint and increased plant efficiency.
Commpak comes engineered and pre-assembled. This range is for Natural Gas only and is suitable for use in dead leg and recirculation systems utilising up to six Continuous Flow units.
| Model | Thermal Input (MJ/hr) | Recovery p/hr (@ 50°C rise) (Litres) | Number of CFWH Units | Water Supply Pressure (Min/Max) (kPa) |
| Commpak CPI02 | 410 | 1645 | 2 | 140/800 |
| Commpak CPE02 | 410 | 1645 | 2 | 140/800 |
| Commpak CPI03 | 615 | 2470 | 3 | 140/800 |
| Commpak CPE03 | 615 | 2470 | 3 | 140/800 |
| Commpak CPI04 | 820 | 3290 | 4 | 140/800 |
| Commpak CPE04 | 820 | 3290 | 4 | 140/800 |
| Commpak CPI05 | 1025 | 4115 | 5 | 140/800 |
| Commpak CPE05 | 1025 | 4115 | 5 | 140/800 |
| Commpak CPI06 | 1230 | 4935 | 6 | 140/800 |
| Commpak CPE06 | 1230 | 4935 | 6 | 140/800 |
