Loline Direct Solar  A610430

Loline Direct Solar
A610430

Enquire
Where to Buy
Compare
  • Overview
  • Specifications
  • Technical Documents

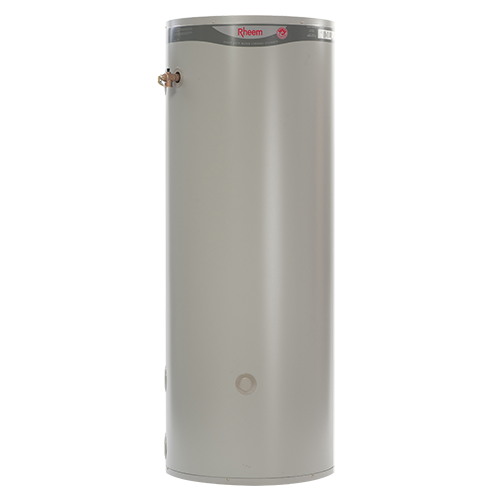

The Rheem 610 series Commercial storage tanks offer the perfect combination of performance and flexibility.

They connect to the mains pressure water supply with 50mm water connections for maximum flow and are suitable for use in combination with a Raypak water heater or Continuous Flow water heater as a buffer tank, for solar preheat and heat pump storage or as additional storage for a Rheem gas or electric hot water system.

These tanks can be installed utilising the Rheem Equa-Flow principle, in a bank of up to ten units to provide up to 4100L of storage or in multiple banks if more storage is required.

Features

  • 410L capacity
  • Lined with heavy duty vitreous enamel for extra corrosion protection
  • Connects to mains pressure water supply
  • 5 year commercial warranty
Storage Capacity Dimensions Installation Location Number of Risers
410 Litres 1875 x 690mm HxW Indoor/Outdoor
Storage Capacity 410 Litres
Dimensions 1875 x 690mm HxW
Installation Location Indoor/Outdoor
Number of Risers

Loline Direct Solar  A610430

Product Specifications

Storage Capacity
410 Litres
Dimensions
1875 x 690mm HxW
Installation Location
Indoor/Outdoor
T&PR Setting - VE & SS/Carbon Steel
1000 kPa
Remote Thermostat Connection (1 x Thermowell supplied)
RP½
ECV Setting (VE & SS/Carbon Steel)
850 kPa
Max Water Supply Pressure w/out ECV (VE & SS/Carbon Steel)
800 kPa
Max Water Supply Pressure with ECV (VE & SS/Carbon Steel)
680 kPa
Max Stored Water Temperature
82 °C
Manifold - Min Centre to Centre (piping one side)
935 mm
Weight Empty Approx (VE & SS/Carbon Steel)
117 kg
Solar Radiation Data





Location


Latitude


Solar Radiation (MJ/m² per day)


Best
Solar Month


Zone
Collector to Tank Ratio - NPT200
610340 610430

per 1000L
(1000L-5000L)

Min Max Min Max Min  Max
Auckland 36 23.1 December 2 2.0 3.0 2.4 3.5 7 10.5
Christchurch 41 22.2 December 2 2.0 3.0 2.5 4.0 8 10
Dunedin 45 18.9 December 3 2.0 3.1 2.5 4.0 8 11

Technical Documents

Technical Document
A610430 Drawing
71 KB
Solar Commercial Loline Water Heating System - Owners Guide & Installation Instructions
3.6 MB
Solar Commercial Loline Installation Overview - Quick Guide
1.1 MB
Installation Typical - Solar Commercial Loline Single Standard
249 KB
Installation Typical - Solar Commercial Loline Single Standard .dwg
2.4 MB
Installation Typical - Solar Commercial Loline Double Standard
261 KB
Installation Typical - Solar Commercial Loline Double Standard .dwg
2.7 MB
Installation Typical - Solar Commercial Loline Single Array with Aux Heater
262 KB
Installation Typical - Solar Commercial Loline Single Array with Aux Heater .dwg
2.4 MB
Installation Typical - Solar Commercial Loline Double Array with Aux Heater
274 KB
Installation Typical - Solar Commercial Loline Double Array with Aux Heater .dwg
2.7 MB
Installation Typical - Solar Commercial Loline with Storage Tanks
107 KB
Installation Typical - Solar Commercial Loline with Storage Tanks .dwg
191 KB
Manifold Details - Solar Commercial Loline Storage Tanks
83 KB
Manifold Details - Solar Commercial Loline Storage Tanks .dwg
234 KB
Wiring Diagram
1.4 MB
Revit - 610430
476 KB
Hot Water for your Home - The Rheem Guide
5.8 MB
Commercial & Industrial Guide
18 MB
Commercial Storage Tanks Brochure
1.3 MB
Commercial Solar Solutions Brochure
1.7 MB
Technical Document
