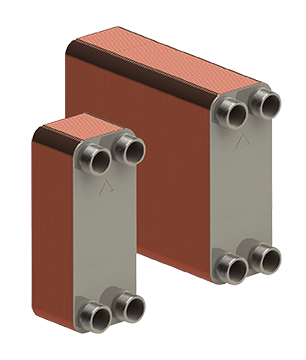

Rheem Heat Exchanger
The Rheem Heat Exchanger transfers energy from heating sources over a period of time into storage tanks to meet peak demand requirements.
Features & Benefits
- 316 Stainless Steel
- Watermark certified
- High static pressure (3MPa)
- Low pressure loss @ design flow rate (2 to 10kPa)
| Model | Flow Rate (Secondary Side/Potable) | Inlet/Outlet Temp (Primary Side/Non-Potable) (°C) | Flow Rate (Primary Side/Non-Potable) | Inlet/Outlet Temp (Secondary Side/Potable) (°C) | Nominal Rating (kW) |
| Heat Exchanger 0191750 | 0.61 L/sec | 80/60 | 0.61 L/sec | 45/65 | 50 |
| Heat Exchanger 0191751 | 1.21 L/sec | 80/60 | 1.22 L/sec | 45/65 | 100 |
| Heat Exchanger 0191752 | 1.85 L/sec | 80/60 | 1.83 L/sec | 45/65 | 150 |
| Heat Exchanger 0191753 | 2.43 L/sec | 80/60 | 2.44 L/sec | 45/65 | 200 |
| Heat Exchanger 0191754 | 3.03 L/sec | 80/60 | 3.05 L/sec | 45/65 | 250 |
