Redi-Set Dual Pump Sets

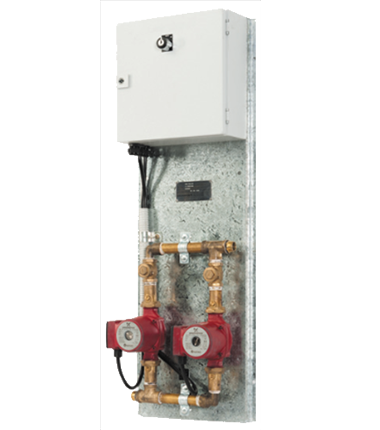

Redi-Set Dual Pump 99501270
Redi-Set Dual Pump 99501270
This standard model has one switch - Pump 1 / Auto / Pump 2 - mounted on the front panel with auto pump change over every 12 hours. The panel is lockable.
Redi-set dual pump sets provide redundancy back up and are an ideal means of reducing energy consumption by timing the operation of the pumps when required.
- Pre-engineered and assembled for ease of installation
- Individual pump control and indicator lights
- Stainless steel pump and brass manifolds
- Includes non-return valve and shut off valves
| Type | Weight | Electrical Rating |
| Standard | 24 kg | 240V / 50Hz |
| Type | Standard |
| Weight | 24 kg |
| Electrical Rating | 240V / 50Hz |
Product Specifications
Type
Standard
Weight
24 kg
Electrical Rating
240V / 50Hz
Warranty: Parts (Parts/Labour)
1 Year
Circulator Type
UPS 20-60N
Liquid Temperature Range
2-110 °C
Max Ambient Temperature
40 °C
Max Operating Pressure
1000 kPa
Pipe Connection
R¾ BSPM
Pump Housing Material
Stainless Steel
Impeller Materials
Composite, PES/PP
Power / Current Speed 1
35 Watts
Power / Current Speed 1
0.15 Amps
Power / Current Speed 2
60 Watts
Power / Current Speed 2
0.25 Amps
Power / Current Speed 3
90 Watts
Power / Current Speed 3
0.37 Amps
Technical Data Table - Pump Accessories
| Standard Model Deluxe Model |
99501270 99501272 |
99501271 99501293 |
|
| Circulator Type | UPS 20-60N | UPS 32-80N | |
| Liquid Temperature Range | °C | 2-110 | 2-110 |
| Max Ambient Temperature | °C | 40 | 40 |
| Max Operating Pressure | kPa | 1000 | 1000 |
| Pipe Connection | BSPM | R¾ | R1¼ |
| Pump Housing Material | Stainless Steel | Stainless Steel | |
| Impeller Material | Composite, PES/PP | Composite, PES/PP | |
| Power/Current Speed 1 | Watts | 35 | 135 |
| Amps | 0.15 | 0.6 | |
| Power/Current Speed 2 | Watts | 60 | 200 |
| Amps | 0.25 | 0.9 | |
| Power/Current Speed 3 | Watts | 90 | 220 |
| Amps | 0.37 | 0.98 |
