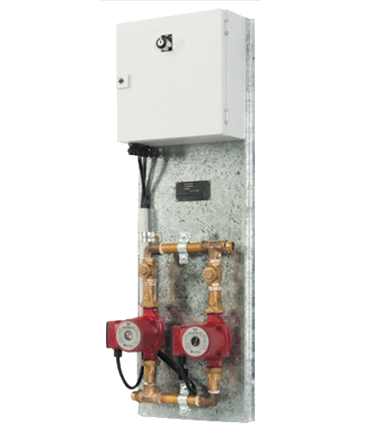

Redi-Set Dual Pump Sets 99501271

Redi-Set Dual Pump Sets
Redi-Set Dual Pump 99501271

Enquire
Where to Buy
Compare
  • Overview
  • Specifications
  • Technical Documents

This standard model has one switch - Pump 1 / Auto / Pump 2 - mounted on the front panel with auto pump change over every 12 hours. The panel is lockable.

Redi-set dual pump sets provide redundancy back up and are an ideal means of reducing energy consumption by timing the operation of the pumps when required.

  • Pre-engineered and assembled for ease of installation
  • Individual pump control and indicator lights
  • Stainless steel pump and brass manifolds
  • Includes non-return valve and shut off valves
Type Weight Electrical Rating
Standard 25 kg 240V / 50Hz
Type Standard
Weight 25 kg
Electrical Rating 240V / 50Hz

Redi-Set Dual Pump Sets 99501271

Product Specifications

Type
Standard
Weight
25 kg
Electrical Rating
240V / 50Hz
Warranty: Parts (Parts/Labour)
1 Year
Circulator Type
UPS 32-80N
Liquid Temperature Range
2-110 °C
Max Ambient Temperature
40 °C
Max Operating Pressure
1000 kPa
Pipe Connection
R1¼ BSPM
Pump Housing Material
Stainless Steel
Impeller Materials
Composite, PES/PP
Power / Current Speed 1
135 Watts
Power / Current Speed 1
0.6 Amps
Power / Current Speed 2
200 Watts
Power / Current Speed 2
0.9 Amps
Power / Current Speed 3
220 Watts
Power / Current Speed 3
0.98 Amps
Technical Data Table - Pump Accessories
Standard Model
Deluxe Model
   99501270
99501272
99501271
99501293
Circulator Type   UPS 20-60N UPS 32-80N
Liquid Temperature Range  °C 2-110 2-110
Max Ambient Temperature °C 40 40
Max Operating Pressure kPa 1000 1000
Pipe Connection BSPM R¾ R1¼
Pump Housing Material   Stainless Steel Stainless Steel
Impeller Material   Composite, PES/PP Composite, PES/PP
Power/Current Speed 1 Watts 35 135
  Amps 0.15 0.6
Power/Current Speed 2 Watts 60 200
  Amps 0.25 0.9
Power/Current Speed 3 Watts 90 220
  Amps 0.37 0.98

Technical Documents

Technical Document
Redi-Set Standard Operations Manual
UPS 20-60N Standard Dimensional Drawing
212 KB
Revit - RediSet Dual Pump
544 KB
Commercial & Industrial Guide
18 MB
Commercial Pump Accessories Brochure
650 KB
Technical Document
