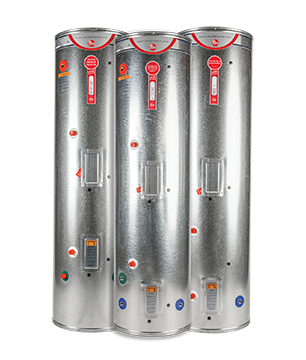

Mains Pressure Stainless Steel Coil
Rheem has extended its mains pressure hot water storage range to include cylinders with an indirect stainless steel coil heat transfer system. Designed and engineered in New Zealand, this tried and tested heat exchange system allows customers the flexibility to choose their heat sources. The various coil options enables the transfer of heat indirectly from wetback, solar, heat pump, or from a combination of thermosiphon/pumped sources.
Sustainability Facts
- All Rheem Stainless Steel Mains Pressure Coil water heaters meet or exceed the NZ MEPS (Minimum Energy Performance Standards).
- The water heaters have recyclable galvanised steel jackets (outer casing) and steel (inner) tanks, as well as recyclable valves. Recyclable cardboard packaging is used only on the top rim of the water heater, meaning there is no unnecessary waste.
- High quality Solstice ZD insulation allows the optimum water temperature to be maintained longer, which results in reduced energy usage and lower costs. Solstice ZD also has very low GWP (Global Warming Potential) and zero ozone-depleting properties.
- Rheem Stainless Steel Mains Pressure Coil water heaters are lighter to transport and install than traditional water heaters.
Model | Approx. Storage Capacity (Litres) | Dimensions (HxW) | Installation Location | Coil/Connection |
MPSSCOIL 35625015ML | 250 | 1745 x 560mm | Indoor | Mid / Left |
MPSSCOIL 35625015MR | 250 | 1745 x 560mm | Indoor | Mid / Right |
MPSSCOIL 35625015LL | 250 | 1745 x 560mm | Indoor | Lower / Left |
MPSSCOIL 35625015LR | 250 | 1745 x 560mm | Indoor | Lower / Right |
MPSSCOIL 35625015DL | 250 | 1725 x 560mm | Indoor | Dual / Left |
MPSSCOIL 35630015ML | 300 | 2065 x 560mm | Indoor | Mid / Left |
MPSSCOIL 35630015MR | 300 | 2065 x 560mm | Indoor | Mid / Right |
MPSSCOIL 35630015LL | 300 | 2065 x 560mm | Indoor | Lower / Left |
MPSSCOIL 35630015LR | 300 | 2065 x 560mm | Indoor | Lower / Right |
MPSSCOIL 35630015DL | 300 | 2045 x 560mm | Indoor | Dual / Left |
