Loline Direct Solar  NPT200 Collector

Loline Direct Solar
NPT200 Collector

Enquire
Where to Buy
Compare
  • Overview
  • Specifications
  • Technical Documents

Rheem Loline provides absolute flexibility in design. Storage tanks can be mounted at the same level or below the collectors to suit site requirements and tank/collector ratios can be closely matched to maximise system efficiency.

  • Modular design provides flexibility
  • NPT200 collector provides good performance in all locations
Storage Modules

Select from 325 litre and 400 litre vitreous enamel storage tanks or 1000 to 5000 litre stainless steel storage tanks where less footprint is required. Rheem commercial storage tanks are designed for heavy duty applications and are supplied with either high temperature enamel or stainless steel and have 50mm connections as standard.

Freeze Protection

Freeze protection is provided by sensors which activate the solar circulator before freezing occurs in the collectors. Rheem Loline is warranted against freeze damage in areas below 400m altitude. An optional electric water heater can be incorporated in the design to assist in freeze protection.

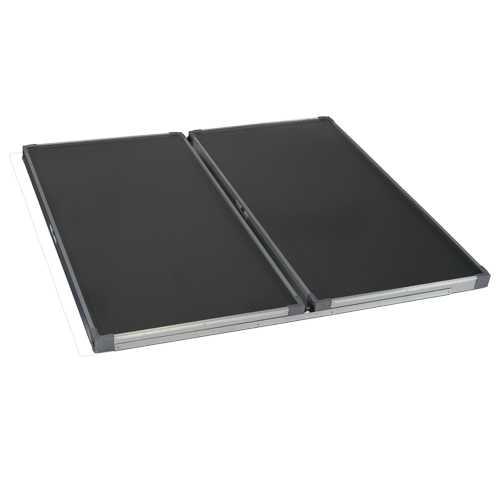

The NPT200 collector is designed to supply you and your family abundant hot water, the NPT200 collector is solidly constructed from high grade copper and aluminium and is housed in a durable Zincalume® steel tray.

This slimline solar collector provides good performance in all locations. Tank/collector ratios can be closely matched to maximise efficiency.

Storage Capacity Dimensions Installation Location Number of Risers
Litres 1941 x 1023 x 80mm HxW Outdoor 7
Storage Capacity Litres
Dimensions 1941 x 1023 x 80mm HxW
Installation Location Outdoor
Number of Risers 7

Loline Direct Solar  NPT200 Collector

Product Specifications

Dimensions
1941 x 1023 x 80mm HxW
Installation Location
Outdoor
Number of Risers
7
Aperture Area
1.86 m2
Collector Weight Empty/Full
36/37 kg
Fluid Capacity
1.5 Litres
Absorber Material
Black Polyester Aluminium
Insulation
Polyester
Glazing
Tempered
Tray Material
Zincalume
Solar Radiation Data





Location


Latitude


Solar Radiation (MJ/m² per day)


Best
Solar Month


Zone
Collector to Tank Ratio - NPT200
610340 610430

per 1000L
(1000L-5000L)

Min Max Min Max Min  Max
Auckland 36 23.1 December 2 2.0 3.0 2.4 3.5 7 10.5
Christchurch 41 22.2 December 2 2.0 3.0 2.5 4.0 8 10
Dunedin 45 18.9 December 3 2.0 3.1 2.5 4.0 8 11
Minimum Inclination Angles
Auckland 20°
Hamilton 22°
Wellington 25°
Christchurch 30°
Dunedin 35°
Invercargill 37°

Technical Documents

Technical Document
Variable Pitch Frames - Installation Guide
9.7 MB
Solar Frames
588 KB
Detail Sheet - Solar Commercial NPT200
166 KB
Detail Sheet - Solar Commercial NPT200 .dwg
1.1 MB
Solar Commercial Loline Water Heating System - Owners Guide & Installation Instructions
3.6 MB
Solar Commercial Loline Installation Overview - Quick Guide
1.1 MB
Installation Typical - Solar Commercial Loline Single Standard
249 KB
Installation Typical - Solar Commercial Loline Single Standard .dwg
2.4 MB
Installation Typical - Solar Commercial Loline Double Standard
261 KB
Installation Typical - Solar Commercial Loline Double Standard .dwg
2.7 MB
Installation Typical - Solar Commercial Loline Single Array with Aux Heater
262 KB
Installation Typical - Solar Commercial Loline Single Array with Aux Heater .dwg
2.4 MB
Installation Typical - Solar Commercial Loline Double Array with Aux Heater
274 KB
Installation Typical - Solar Commercial Loline Double Array with Aux Heater .dwg
2.7 MB
Installation Typical - Solar Commercial Loline with Storage Tanks
107 KB
Installation Typical - Solar Commercial Loline with Storage Tanks .dwg
191 KB
Manifold Details - Solar Commercial Loline Storage Tanks
83 KB
Manifold Details - Solar Commercial Loline Storage Tanks .dwg
234 KB
Wiring Diagram
1.4 MB
Hot Water for your Home - The Rheem Guide
5.8 MB
Commercial & Industrial Guide
18 MB
Commercial Storage Tanks Brochure
1.3 MB
Commercial Solar Solutions Brochure
1.7 MB
