Premier Loline Solar System
A591270/2C
A591270/2C

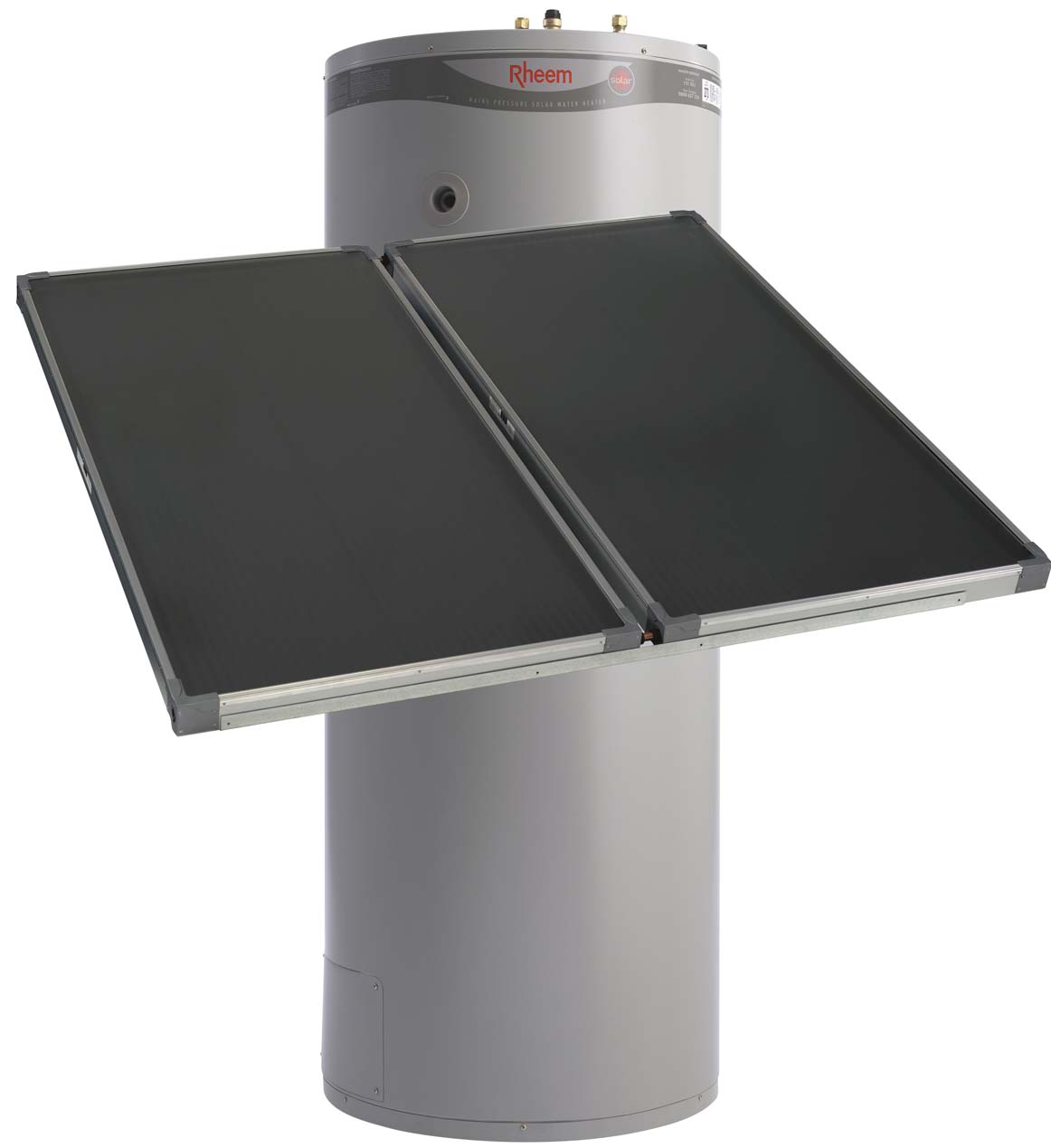

- Rheem Premier Solar LoLine 270L 2 X T200 Collectors - Electric Boost
- 1 x 270 Litre Cylinder with central heat exchanger, “Drain Back” reservoir and 3 kW electric booster element (cylinder can be internally or externally mounted)
- Pump and Controller mounted at base of cylinder factory set for optimum performance
- Heat Exchanger is pre-charged with heating fluid (top up may be necessary following commissioning)
- 2 x high performance glazed flat panel solar collectors
- The solar storage tank incorporates a solar monitor which is located on the lower front cover and
indicates the operational mode of the solar water heater - Collector mounting kit for roof of correct inclination (for flat roofs a stand can be purchased separately) - screws must be compatible with substrate/roofing material
Solar Installation Tips
- Collectors should ideally face due north, however, a system installed with the collectors facing as far as north-east and north-west will experience an approximate 5% drop in operating efficiency.
- Collectors should be inclined at approximately the latitude angle, however, 15° either way is acceptable, but not less than 10° from the horizontal. For flat roof installations, Rheem can supply variable pitch frames suitable for either one or two collectors with pre-set pitch angles of 15°, 20° and 25°.
- Metallic flow and return lines only MUST be used between the solar storage tanks and the collectors.
| Number of Collectors | Dimensions | Installation Location | Boost Option |
| 2 | 1775 x 650mm HxW | Indoor/Outdoor | Electric |
| Number of Collectors | 2 |
| Dimensions | 1775 x 650mm HxW |
| Installation Location | Indoor/Outdoor |
| Boost Option | Electric |
Product Specifications
Type
Mains Pressure
Weight Full - Collector
@ 54 kg each
Number of Collectors
2
Finish
Colourbond
Approx. Storage Capacity
270 Litres
Roof Space Required
2.4 x 2.0m 2 Collectors
Dimensions
1775 x 650mm HxW
# People (Moderate Climate)
1-3
Expansion Control Valve (ECV) Setting
850 kPa
Weight Empty - Cylinder
146 kg
Frost Protection
Down to -20°C
Installation Location
Indoor/Outdoor
Country of Manufacture
Australia
Weight Empty - Collector
@ 50 kg each
Water Connection Inlet & Outlet
RP¾/20 mm
Booster Element
2.0 kW
T&PR Connection
RP½/15 mm
Max Water Supply Pressure w/out ECV
800 kPa
Max Water Supply Pressure with ECV
680 kPa
Boost Option
Electric
Boost Capacity
125 Litres
Domestic Warranty: Parts (Parts/Labour)
1 Year
Domestic Warranty: Cylinder/Tank (Labour)
3 Year
Domestic Warranty: Cylinder/Tank (Replacement)
5 Year
Domestic Warranty: Heat Exchanger (Parts/Labour)
5 Year
Non-Domestic Warranty: Parts (Parts/Labour)
1 Year
Non-Domestic Warranty: Cylinder/Tank (Labour)
1 Year
Non-Domestic Warranty: Cylinder/Tank (Replacement)
3 Year
Non-Domestic Warranty: Heat Exchanger (Parts/Labour)
5 Year
Water Connections
| Inlet | ¾/20 BSPF |
| Outlet | ¾/20 BSPF |
| Gas | ¾/20 BSPM |
| Solar Flow & return | ¾/15 BSPM |
