Premier Loline Solar System
A591270/2CGL
A591270/2CGL

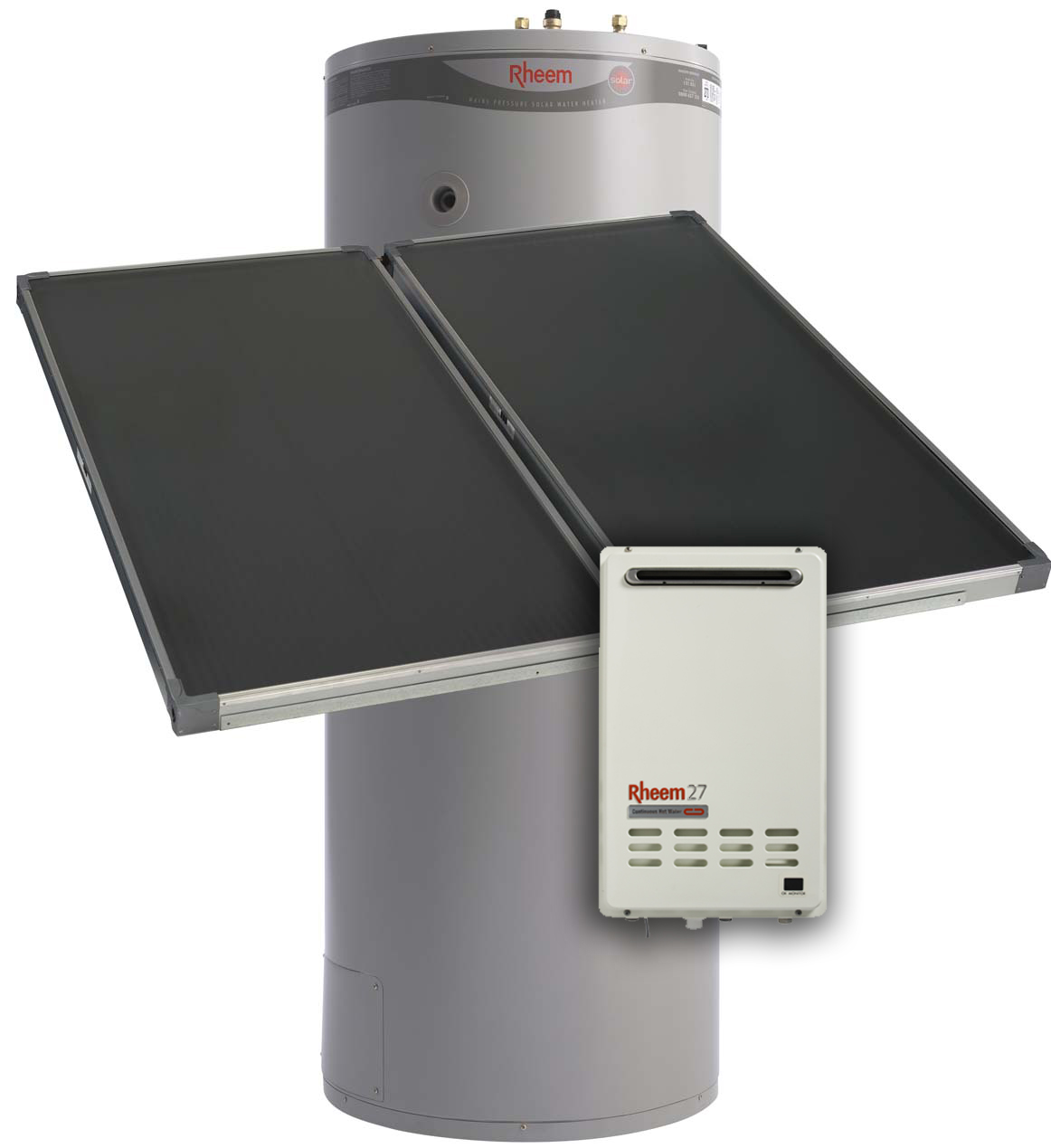

- Rheem Premier Solar LoLine 270L 2 X T200 Collectors - Gas Boost
- 1 x 270 Litre Cylinder with central heat exchanger, “Drain Back” reservoir and 3 kW electric booster element (cylinder can be internally or externally mounted)
- Pump and Controller mounted at base of cylinder factory set for optimum performance
- Heat Exchanger is pre charged with heating fluid (top up may be necessary following commissioning)
- The solar storage tank incorporates a solar monitor which is located on the lower front cover and
indicates the operational mode of the solar water heater - 2 x high performance glazed flat panel solar collectors
- Collector mounting kit for roof of correct inclination (for flat roofs a stand can be purchased separately) - screws must be compatible with substrate/roofing material
- 1 x 27L Solar Ready continuous flow gas booster
| Number of Collectors | Dimensions | Installation Location | Boost Option |
| 2 | 1700 x 650mm HxW | Outdoor | ULPG |
| Number of Collectors | 2 |
| Dimensions | 1700 x 650mm HxW |
| Installation Location | Outdoor |
| Boost Option | ULPG |
Product Specifications
Number of Collectors
2
Minimum Supply Pressure (Gas Boosted Only)
150 kPa
Approx. Storage Capacity
270 Litres
Roof Space Required
2.4 x 2.0m 2 Collectors
Dimensions
1700 x 650mm HxW
# People (Moderate Climate)
2-6
Weight Empty - Cylinder
146 kg
Installation Location
Outdoor
Country of Manufacture
Australia
Weight Empty - Collector
48 kg each
Gas Connection Size
¾/20 BSPM
Gas Type
ULPG
Boost Option
ULPG
Boost Capacity
27 per/min Litres
Domestic Warranty: Parts (Parts/Labour)
1 Year
Domestic Warranty: Cylinder/Tank (Labour)
3 Year
Domestic Warranty: Cylinder/Tank (Replacement)
5 Year
Domestic Warranty: Heat Exchanger (Parts/Labour)
5 Year
Non-Domestic Warranty: Parts (Parts/Labour)
1 Year
Non-Domestic Warranty: Cylinder/Tank (Labour)
1 Year
Non-Domestic Warranty: Cylinder/Tank (Replacement)
3 Year
Non-Domestic Warranty: Heat Exchanger (Parts/Labour)
5 Year
Technical Documents
Solar Premier Spare Parts
443 KB
443 KB
Solar Premier Service Manual
1.8 MB
1.8 MB
