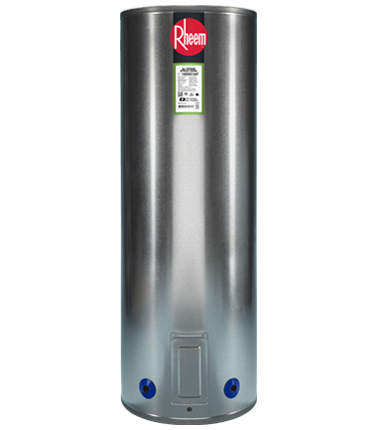

All Pressure Vitreous Enamel 14T25015AP

All Pressure Vitreous Enamel
APVE 14T25015AP
New Zeland Made

Enquire
Where to Buy
Compare
Overview

This APVE hot water cylinder is suitable for all water pressures. It is designed to make upgrading to Mains Pressure simple, as it can easily be connected to low pressure and upgraded later with a valving change.  It is a smart, future-ready solution.

  • Vitreous Enamel lined cylinder provides a durable and hygienic hard finish to prevent rusting and corrosion
  • New Zealand Minimum Energy Performance Standards Compliant
  • Suitable for a wide range of water conditions
  • Triple inlet as standard
  • Backed by the Rheem nationwide sales & service network
  • Proudly designed and manufactured in New Zealand

Stock not available of this model currently – please call Customer services 080065733

Approx. Storage Capacity Dimensions ** Installation Location Element Rating
250 Litres 560 x 1710H Indoors 3.0 kW
Approx. Storage Capacity 250 Litres
Dimensions ** 560 x 1710H
Installation Location Indoors
Element Rating 3.0 kW
** Sizing is subject to be within +/- 5mm due to manufacturing.

All Pressure Vitreous Enamel 14T25015AP

Product Specifications

Type
All Pressure
Finish
Galvanised
Approx. Storage Capacity
250 Litres
Thermostat Setting Max
75 °C
Dimensions **
560 x 1710H
# People (Moderate Climate) *
5+
Thermostat Setting Min
60 °C
# People (Cold Climate) *
4+
Installation Location
Indoors
Country of Manufacture
New Zealand
Element Type
Copper (T/P) Screw-In
Electrical Connection
240/50 V AC/ Hz
Water Connection Inlet & Outlet
RP ¾ 20 mm
Element Rating
3.0 kW
Connection
Triple Inlet
Weight Empty Approx
TBA kg
Max Working Pressure
850 kPa
Domestic Warranty: Parts (Parts/Labour)
1 Year
Domestic Warranty: Cylinder/Tank (Labour)
3 Year
Domestic Warranty: Cylinder/Tank (Replacement)
10 Year
Non-Domestic Warranty: Parts (Parts/Labour)
1 Year
Non-Domestic Warranty: Cylinder/Tank (Labour)
1 Year
Non-Domestic Warranty: Cylinder/Tank (Replacement)
3 Year
** Sizing is subject to be within +/- 5mm due to manufacturing.
* Conditions may vary. Based on 7-minute showers, using mixed temperature of 42 °C and a shower flow rate of 10 l/min.
